# Device Manage Page

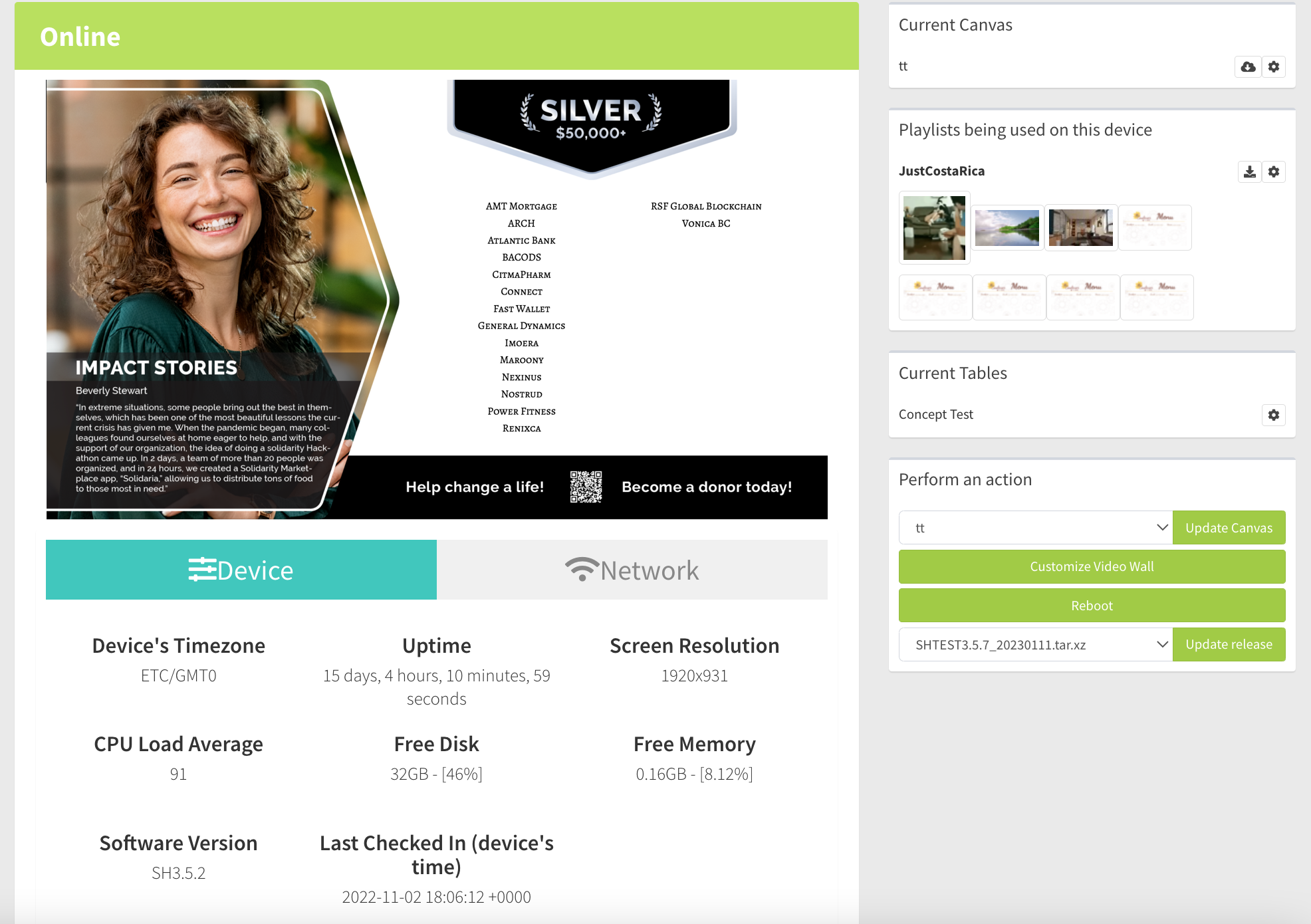

## Overview of the Device Manage Page for Media Players

![](https://help.envisioncreates.com/hubfs/Knowledge%20Base%20Import/image-png-Jan-25-2023-03-48-58-4863-AM.png)

### Field and Button Descriptions

**Snapshot**

An image of what's being displayed on the screen. This does not update in real time but rather updates every couple of minutes.

**Last checked in (profile's time)**
The timestamp from the dashboard based on your profile's timezone and when the device checked in last.

**Last checked in (device's time)**
When the device checked into the dashboard last according to the device's timezone.

**Device's Timezone**
Which timezone is assigned to the device currently. If incorrect, this can be changed in the device itself.

**Uptime**
Total time that the device has been online since its last reboot.

**Free Disk**
The total disk space remaining on the device, as well as a percentage showing how much this represents as a total of the overall disk space.

**Free Memory**
The total memory remaining on the device, as well as a percentage showing how much this represents as a total of the overall memory.

**CPU Load Average**
How much average CPU core load is being used in the last 1, 5 and 15 minutes. Every 1 point represents 1 CPU core. If your machine has 1 core and your CPU core load is 1 then it is being used to its maximum.

**CPU Temperature**
Temperature of the CPU, represented in industry-standard Celsius. Typical operating CPU temperatures are between 60-70 Celsius. Consult your hardware manufacturer's user manual for hardware-specific maximum and expected CPU temperatures.

**Wireless Signal Strength**
Represented between 0-100%. Signal strength is simply a measure of how close the unit is compared to the nearest wireless hotspot / access point. If signal strength is high, but signal quality is low then you may be near a WIFI source, but perhaps between walls or some other obstruction, which can impact overall wireless usability.

**Wireless Signal Quality**
Overall quality of the link. May be based on the level of contention or interference, the bit or frame error rate, how good the received signal is, some timing synchronization, or other hardware metric. This is an aggregate value, and depends totally on the driver and hardware.

An "Unknown" value is typical of a device not using Wireless.

**IP Address**
The Local Area Network (LAN) IP of the unit.

**WAN IP Address**
The Wide Area Network (WAN) IP of the network that the unit is on.

**Wired MAC Address**
The device's Media Access Control (MAC) Address. It is a unique network identifier commonly used for whitelisting and address reservation on networks. This MAC address is specific to the Wired ethernet port.

**Wireless MAC Address**
The device's Media Access Control (MAC) Address. It is a unique network identifier commonly used for whitelisting and address reservation on networks. This MAC address is specific to the Wireless adapter.

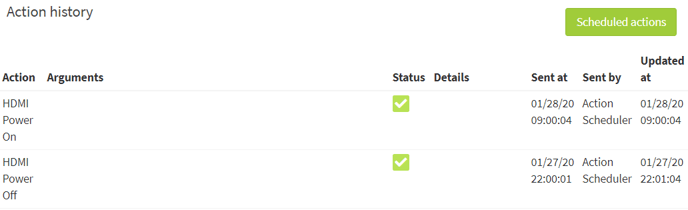

**Action History**

**![Device Management Action History](https://help.envisioncreates.com/hs-fs/hubfs/Knowledge%20Base%20Import/Device%20Management%20Action%20History-1.png?width=688&name=Device%20Management%20Action%20History-1.png)**

**Action**
The action that was sent to the device. Options for these actions are listed in the Actions section.

**Arguments**
Arguments include the parameters of the action. For example, a layout update action's argument would be the name of the layout.

**Status**
A show of whether the action is pending, completed, or error.

Complete
The action went through, has taken, and the device has confirmed to the dashboard that all is well.

Pending
The action has not reached the device OR the action is still processing within the device, such as while it is downloading large playlist. When a device is offline it will stay pending until it comes online. If there are multiple pending actions then it will disable all other pending actions except for the most recent.

Error
Either the action is not supported in the device's version, the action has failed for any various number of reasons, or the action was cancelled because of a queue of pending actions while a device was offline.

**Details**
This area is used to show download progress, or a reason for action error.

**Sent at**
A timestamp based on your profile's timezone of when the action was originally sent.

**Sent by**
The user profile who sent the action.

**Updated at**
The last time it checked in about this action. Typically this will be the Completed or Error timestamp, but if the device checks in with a download status update then it will update to when that was sent last.



**Scheduled Actions**

![Schedule Actions Button](https://help.envisioncreates.com/hs-fs/hubfs/Knowledge%20Base%20Import/Schedule%20Actions%20Button-1.png?width=205&name=Schedule%20Actions%20Button-1.png)

This button is used to quickly view the scheduled actions for the day, as well as all scheduled actions assigned to this device.

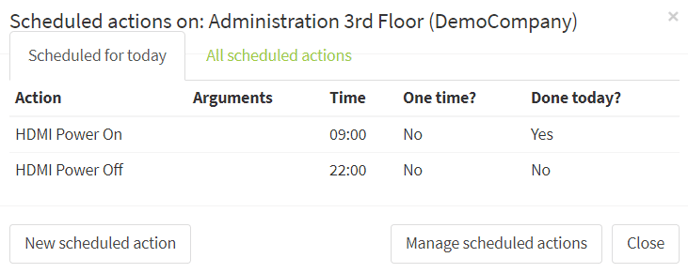

**Scheduled for today**

![Device Management Scheduled Actions Today](https://help.envisioncreates.com/hs-fs/hubfs/Knowledge%20Base%20Import/Device%20Management%20Scheduled%20Actions%20Today-1.png?width=688&name=Device%20Management%20Scheduled%20Actions%20Today-1.png)

Only the actions that will publish on this day.

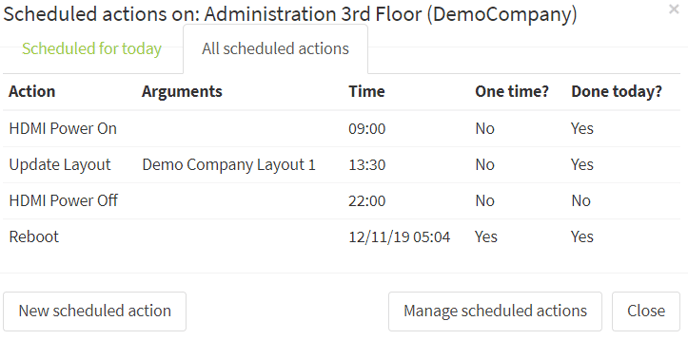

**All Scheduled Actions**

![Device Management Scheduled Actions All](https://help.envisioncreates.com/hs-fs/hubfs/Knowledge%20Base%20Import/Device%20Management%20Scheduled%20Actions%20All-1.png?width=688&name=Device%20Management%20Scheduled%20Actions%20All-1.png)

Shows all one-time and recurring actions for all days.

**Action**
Similarly to the Action History, this section is to denote which action is scheduled to send sent.

**Arguments**
Based on the action to send, this says what argument should be applied. For instance, a Layout Update action would have an argument with the layout's name.

**Time**
The time, based on your profile's timezone, that the action is scheduled to occur.

**One time?**
Whether this action will only occur once. If it is not, then it's a recurring action that happens on regular intervals.

**Done today?**
If the dashboard has sent the scheduled action yet or not.

**New Scheduled Action button**
Goes to the [Scheduled Action New / Edit Page](https://help.envisioncreates.com/knowledge/scheduled-action-new-edit-page?hsLang=en) in order to create a scheduled action for this device.

**Manage scheduled** **actions**
A link to show all scheduled actions for this particular device. From this page you can add, edit or remove scheduled actions. [More information here](https://help.envisioncreates.com/knowledge/scheduled-action-page?hsLang=en).



**Perform an action**

![](https://help.envisioncreates.com/hs-fs/hubfs/Knowledge%20Base%20Import/image-png-Jan-25-2023-03-53-24-6897-AM.png?width=269&height=139&name=image-png-Jan-25-2023-03-53-24-6897-AM.png)

The "Perform an action" section is where you can make system-level changes to the device, including toggling video outputs, setting a new Canvas, adjusting the video output rotation and alignments, reboot, and update the software version.

**Update Canvas**
Canvas tell the device what to display. Any Playlists and Tables linked to the layout will show up on the device page. By changing the Canvas you will change what Playlists and Tables can be seen on the Device Manage page.

**Customize Video Wall**
This page allows you to arrange, turn on/off, and change orientation on one or multiple video outputs. [More information here](https://help.envisioncreates.com/knowledge/customize-video-wall-page?hsLang=en).

**Reboot**
Restarts the device. A prompt will appear to confirm that this action was intentionally selected prior to sending to the device.

**Update Release**

Use this to upgrade and downgrade software as needed. Be careful of downgrading as some earlier versions require open internet access which is not capable on locked down networks.



**Current Canvas**

![](https://help.envisioncreates.com/hs-fs/hubfs/Knowledge%20Base%20Import/image-png-Jan-25-2023-03-56-17-7800-AM.png?width=331&height=86&name=image-png-Jan-25-2023-03-56-17-7800-AM.png)

The current Canvas shows the Canvas' name attached to the device.

**Export Canvas button**
Exports an *.oax* file extension to be used to update the Canvas on the device manually for instances where the device has no internet and needs an update.

To update the Canvas on the device:

1. Press the Export Canvas button to download the .oax file
2. Put the .oax file on a clean [FAT32-formatted USB drive](https://www.asus.com/support/FAQ/1044735/), not hidden within any folders
3. Safely eject the USB from your computer
4. With the device running, input the USB stick into one of the device's USB ports
5. Once completed, it will prompt that the canvas update has finished
     1. Note: This process can take up to 2 minutes, though is typically faster
6. Remove the USB stick

**Configure Canvas button**
Goes to the [Canvas Configuration Page](https://help.envisioncreates.com/knowledge/canvas-configuration-page?hsLang=en) where you can add, remove or edit widgets, change the placement of widgets, set up emergency messaging, etc.

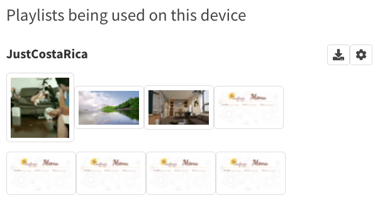

**Playlists being used on this device section**

![](https://help.envisioncreates.com/hs-fs/hubfs/Knowledge%20Base%20Import/image-png-Jan-25-2023-03-58-47-3731-AM.png?width=380&height=204&name=image-png-Jan-25-2023-03-58-47-3731-AM.png)

This section will show all playlists (if any) assigned to the selected Canvas.

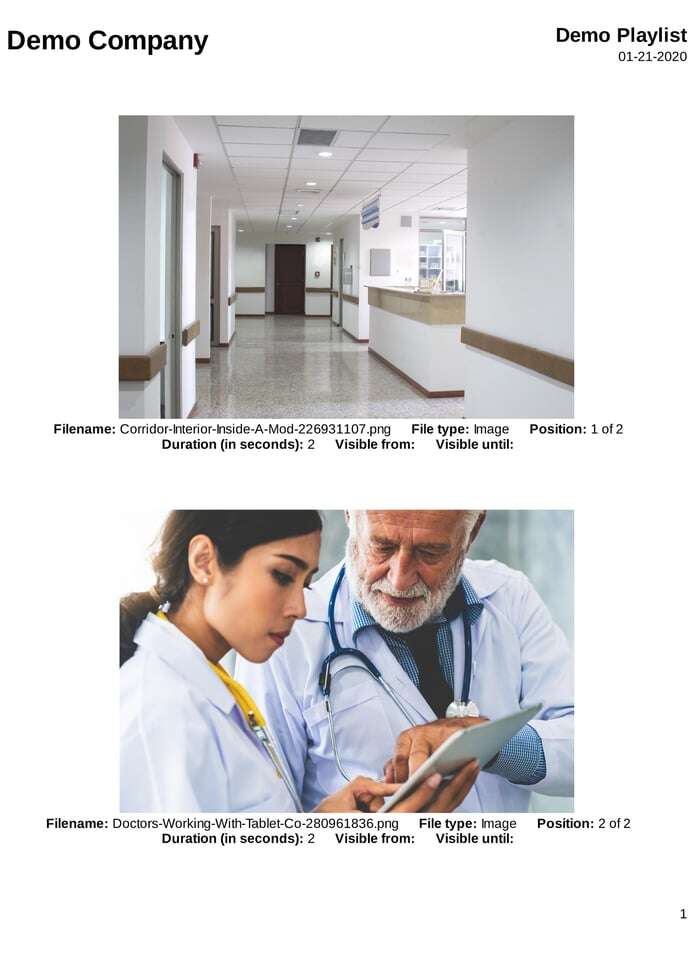

**Download PDF Brochure**

![Brochure](https://help.envisioncreates.com/hs-fs/hubfs/Knowledge%20Base%20Import/Brochure-1.jpg?width=688&name=Brochure-1.jpg)

This will create and download a PDF of all of the playlist's files. Please note that it may take several minutes for this brochure to populate in the back end prior to download. Please do not navigate away from this page during that time.

Preview
This is a one-frame, or compressed preview image of the content. Please note that HTML files will not render, and instead will show "THIS ELEMENT HAS NO PREVIEW AVAILABLE."

Filename
This is the name of the file in the playlist.

File type
Whether the file is a video, image, or HTML file.

Position
Where the file is in the playlist rotation

Duration (in seconds)
How many seconds the file is expected to play for.

Visible from/until:
The date and time that the file was pre-scheduled to start or end. This is applicable only if the content is set on a schedule to start at a date later than initially entered into the dashboard, or pre-scheduled to end on a specific date and time.

It is most common to manually add these at the time that they will start or end, and as such will be blank.

**Playlist Manage button**
Clicking this will go to the [Playlist Manage Page](https://help.envisioncreates.com/knowledge/playlist-manage-page?hsLang=en) where you can add, edit, remove, or rearrange content.
